Specific parameters:
| Product Model | ESK-2420CR | ESK-4810CR |
| Type of Battery | Lithium Iron Phosphate |
| Cell layout | 16S1P |
| Max parallel | 64 sets | 64 sets |
| Rated capacity | 200AH(5120WH) | 100AH(5120WH) |
| Rated voltage | 25.6v | 51.2v |
| Charging voltage | 29.2V | 58.4V |
| Max charging current | 100A | 100A |
| Max discharge current | 100A |
| Weight | 43kg | 43kg |
| Dimension (L* W * H) | 460*442*117mm | 460*442*117mm |
| Display | LCD |
| Communication function | CAN/RS485 or dry contact |
| Cycle life | ≥6000 times |
| Matched solar inverter brands | PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO /Deye/INVT/Voltronic/SOFAR/SOROTEC,etc. |
| Protection function | Overcharge protection,over discharge protection,over-current protection,short circuit protection,over temperature protection and low voltage alarm |
| Application | Home Appliances, Industrial and commercial energy storage,Household energy storage,Large-scale photovoltaic energy storage projects,UPS energy storage |
Product Description:
One of the key advantages of the 48V Solar Battery is its impressive max continuous discharge current of 100A (5KW), which enables it to deliver high levels of power over extended periods of time. This makes it an ideal choice for larger solar panel systems that require a consistent and reliable energy source to power homes, businesses, and other facilities.
In addition to its impressive discharge capabilities, the 48V Solar Battery also boasts a rated capacity of 25.6V200AH/51.2V100AH (5120WH), which allows it to store large amounts of energy for use during periods of low sunlight or high energy demand. This means you can enjoy uninterrupted power even when weather conditions are less than optimal, and reduce your reliance on traditional energy sources like the grid.

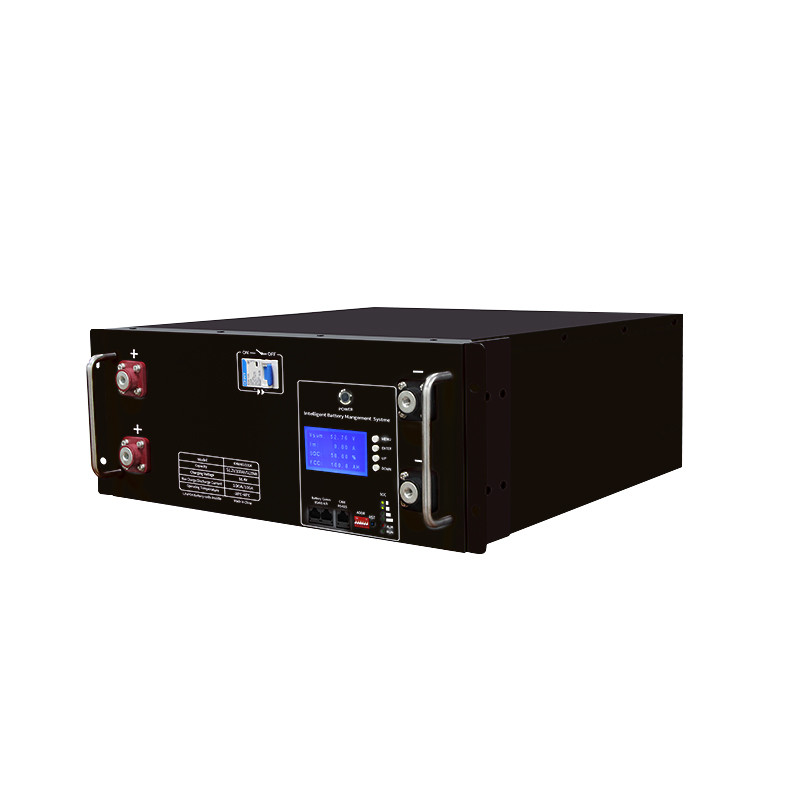

The 48V Solar Battery is also built to last, with a rugged and durable black painted steel shell that can withstand harsh environmental conditions and resist damage from impact or abrasion.
To make it easy to monitor and manage your energy storage, the 48V Solar Battery features a convenient LCD display that provides real-time information on battery status and performance. This allows you to track your energy usage and optimize your power storage for maximum efficiency and cost savings.
Finally, the 48V Solar Battery also includes advanced communication functions like RS485/CAN Protocol, which enable it to interface with other components of your solar panel system and communicate critical data on energy usage, battery status, and other key metrics. This makes it easy to integrate the battery into your existing system and take full advantage of its advanced capabilities.
Features:
- Product Name: 48V Solar Battery
- Max Charging Current: 100A
- Cycle life: ≥6000 Times
- Battery Type: Lithium Iron Phosphate
- Communication function: RS485/CAN Protocol
- Max continuous discharge current: 100A(5KW)
Technical Parameters:
| Technical Parameter | Value |
| Product | 48V Solar Battery |
| Max Charging Current | 100A |
| Rated Capacity | 25.6V200AH/ 51.2V100AH(5120WH) |
| Shell Material | Black Painted Steel Shell(optional) |
| Battery Type | Lithium Iron Phosphate |
| Rate Voltage | 25.6V/51.2V |
| Max parallel | 64 |
| Max continuous discharge current | 100A(5KW) |
| Cycle life | ≥6000 Times |
| Charging Voltage | 29.2V/58.4V |
| Communication function | RS485/CAN Protocol |
Support and Services:
The 48V Solar Battery product technical support and services include:
- Assistance with installation and setup of the battery
- Troubleshooting any technical issues that may arise during operation
- Replacement of any defective parts or components
- Upgrades and enhancements to improve battery efficiency and lifespan
Our team of experts is available to provide support and answer any questions you may have about the 48V Solar Battery product.
FAQ:
Q: What is the brand name of this solar battery?
A: The brand name of this solar battery is ENIKOL.
Q: What are the models available for this solar battery?
A: The available models for this solar battery are ESK2420CR and ESK4810CR.
Q: Where is this solar battery manufactured?
A: This solar battery is manufactured in Shenzhen.
Q: What certifications does this solar battery have?
A: This solar battery has CE, FCC, UKCA, U38.3, and MSDS certifications.
Q: What is the minimum order quantity for this solar battery?
A: The minimum order quantity for this solar battery is 1 unit.
Q: What is the price of this solar battery for a sample?
A: The price of this solar battery for a sample is USD633.
Q: What are the packaging details of this solar battery?
A: The packaging details of this solar battery include carton, wooden box, or pallet.
Q: What is the delivery time for this solar battery?
A: The delivery time for this solar battery is 7-15 days.
Q: What are the payment terms for this solar battery?
A: The payment terms for this solar battery include T/T, L/C, D/A, and D/P.
Q: What is the supply ability of this solar battery?
A: The supply ability of this solar battery is 4000 pieces per week.
