| Product Model | ESK-4820CW |
| Type of Battery | Lithium Iron Phosphate |
| Max parallel | 16 sets |
| Rated capacity | 200AH (10240WH) |
| Rated voltage | 51.2V |
| Charging voltage | 58.4V |
| Max charging current | 200A |
| Max continuous discharge current | 200A optional |
| Weight | 85kg |
| Dimension (L* W * H) mm | 955*460*195 |
| Display | LCD |
| Warranty | 5 years |
| Communication function | CAN/RS485/RS232 |
| Shell Material | White painted steel |
| Cycle life | ≥8000 times |
| Operating temperature | -20℃ to +65℃ |

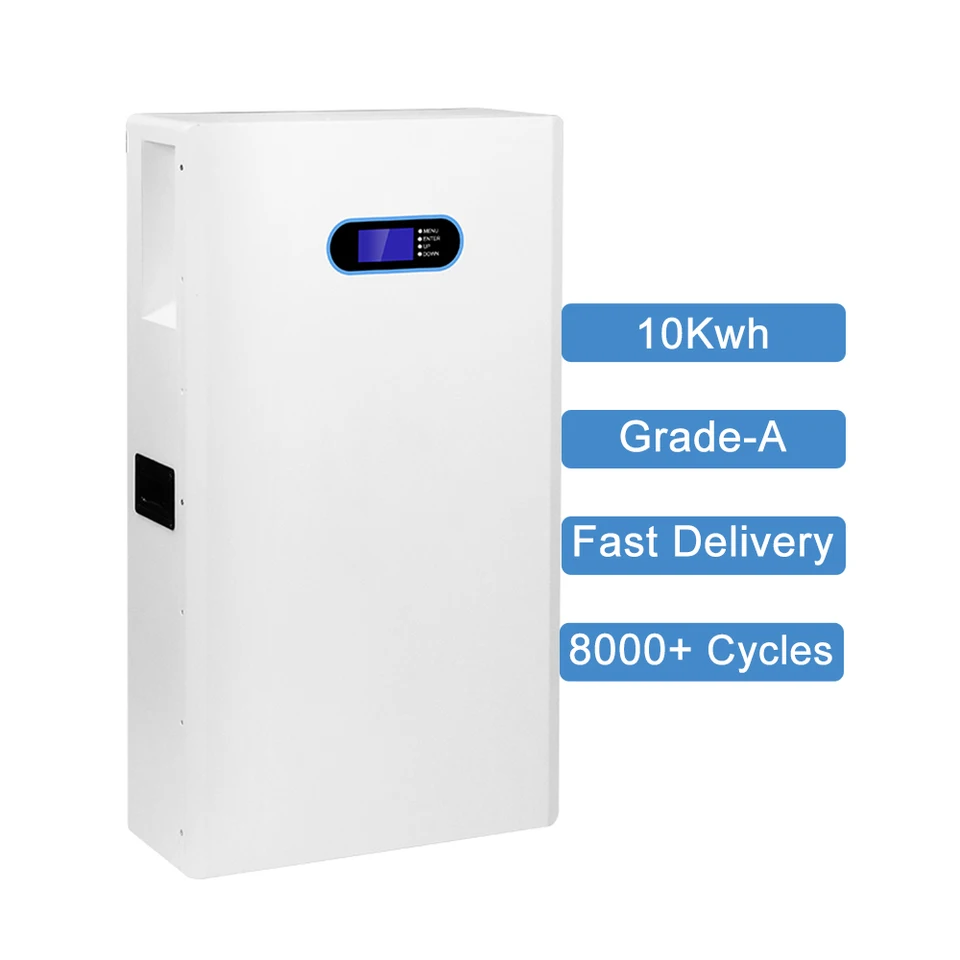

Product Description:
The Wall Mounted LiFePo4 Energy Storage system comes with a built-in BMS, which ensures the safety and longevity of the battery. The BMS is responsible for managing the battery cells, protecting against overcharging, discharging, and temperature fluctuations.
The LCD display provides users with real-time data and battery information, including voltage, current, power, and state of charge. The display makes it easy to monitor the battery's performance, ensuring that you are always aware of its status.
The Wall Mountable LiFePo4 Energy Storage system is designed for easy installation and can be mounted on the wall, making it an excellent space-saving option. The wall-mounted design also offers excellent protection against accidental damage, making it a safe choice for busy households and commercial settings.
Features:
| Protection function | Overcharge protection, over discharge protection, over-current protection, short circuit protection, over temperature protection and low voltage alarm |
| Matched solar inverter brands | PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC,etc. |
| Bluetooth function | Optional |
| Application | Home Appliances, Industrial and commercial energy storage,Household energy storage,Large-scale photovoltaic energy storage projects,UPS energy storage |
Technical Parameters:
| Battery Model | ESK-4820CW (Wall Mounted & Floor Standing) |
| Rated Capacity | 200AH(10240WH) |
| Shell Material | White Painted Steel |
| Anode Material | LFP |
| BMS | Built In BMS |
| Cycle life | ≥6000 Times |
| Display | LCD |
Applications:
The max continuous discharge current of ENIKOL ESK4820CW is 200A(10KW), which can meet the power demand of various appliances. It can be connected in parallel up to 16 units, providing scalable energy storage solutions for different scenarios.
In summary, ENIKOL ESK4820CW is a reliable and cost-effective wall-mountable LiFePo4 energy storage solution for 48V solar energy systems. With its high-quality performance, flexible communication functions, and scalable design, it is suitable for residential and commercial occasions and scenarios.
Price: USD1139 for sample(Wholesale prices are negotiable)
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 4000 pieces per week
Support and Services:
The Wall Mounted LiFePo4 Battery is a high-performance and reliable energy storage solution for residential and commercial applications. It features a long lifespan, fast charging capability, and high energy efficiency. Our team of technical experts is available to provide product support and services including:
- Installation guidance and technical assistance
- Troubleshooting and diagnosis of issues
- Upgrades and customization options
- Product training and educational resources
We are committed to ensuring that our customers receive the highest level of support and satisfaction with their Wall Mounted LiFePo4 Battery. Please do not hesitate to contact us for any technical inquiries or service requests.
